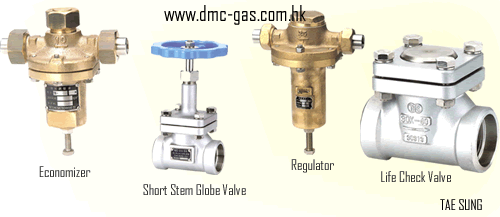

Globe Valve/Check Valve/Regulator/Economizer |
|
|
|
|
| |
|
|
| |
| File Name:TAE SUNG |
File Size: 6.18 MB  |
|
 |
|
| |
|
|
| |
 Globe Valve |
|
| |
Short Stem Globe Valve / Long Stem Globe Valve (Stainless Steel)
FEATURES: PCTFE disc in our stainless steel globe valve provides a virtually bubble-fight seal.
SERVICES: Liquefied and vaporized atmospheric gases, LNG, etc.
ENDS: Socket weld, screwed end.
Design Data
Design Pressure |
|
| Design temp. |
-40 ℃ to + 75 ℃ |
| Kind of Fluid |
LN 2 , LO 2 , LAr, LCO 2 , LNG, LC 2 H 2 |
| Hydrostatic Test Pressure |
6.0MPa |
| Pneumatic Test Pressure |
4.4MPa |
| Size |
15A 20A 25A 40A 50A 80A 100A |
Emergency Globe Valve
Design Data
Design Pressure |
|
| Design temp. |
-40 ℃ to + 75 ℃ |
| Kind of Fluid |
LN 2 , LO 2 , LAr, LCO 2 , LNG, LC 2 H 2 |
| Hydrostatic Test Pressure |
6.0MPa |
| Pneumatic Test Pressure |
3.3MPa |
| Size |
15A 20A 25A 40A 50A 80A 100A |
|
|
| |
Check Valve
Check Valve (Life Type) - For Cryogenic Service
Construction & Function:
This lets the fluid in valve flow into one way and prevents an inverse current of the fluid. This is constructed a lift type that valve-body opens and shuts the upper and lower sides moving at valve sheet and the use pressure is the 30kg /cm 2.
Design Data
Design Pressure |
|
| Design temp. |
-196 ℃ to + 75 ℃ |
| Kind of Fluid |
LN 2 , LO 2 , LAr, CO 2 , LNG, LC 2 H 2 |
| Hydrostatic Test Pressure |
4.5MPa |
| Pneumatic Test Pressure |
3.3MPa |
| Size |
15A 25A 40A 50A 80A 100A |
Life Check Valve (Stainless Steel) - For Cryogenic Service
FEATURES: Prevents reverse flow in critical cryogenic applications.
SERVICES: Liquefied and vaporized atmospheric gases, LNG, etc.
ENDS: Socket weld.
Design Data
Design Pressure |
|
| Design temp. |
-196 ℃ to + 75 ℃ |
| Kind of Fluid |
LN 2 , LO 2 , LAr, CO 2 , LNG, LC 2 H 2 |
| Hydrostatic Test Pressure |
6.0MPa |
| Pneumatic Test Pressure |
4.4MPa |
| Size |
15A 25A 40A 50A 80A 100A |
|
|
| |
Regulator ( 4 -15KG /CM 2 G / 10~ 25 KG /CM 2 G ) - For Cryogenic Service
Function: This regulates regularly the set-pressure at your request and has a large capacity size and three kinds -20A , 25A , 40A and classifires the low pressure of 4~ 15kg /cm 2 and the high pressure of 15~ 30kg /cm 2 .
Design Data
Design Pressure |
|
| Design temp. |
-196 ℃ to + 75 ℃ |
| Kind of Fluid |
LN 2 , LO 2 , LAr, CO 2 , LNG, LC 2 H 2 |
| Hydrostatic Test Pressure |
6.0MPa |
| Pneumatic Test Pressure |
3.3MPa |
| Adjust Range |
0.4~1.5MPa |
| Setting Press |
SEE P/O SHEET |
|
|
| |
Economizer ( 4 -15KG /CM 2 G / 10~ 25 KG /CM 2 G ) - For Cryogenic Service
Fuction:This is valve that increase the pressure or keeps the fixed pressure when the fluid pressure is higher than the use pressure.
Our company produces a 10A 15A ECONOMIZER.
Design Data
Design Pressure |
|
| Design temp. |
-196 ℃ to + 75 ℃ |
| Kind of Fluid |
LN 2 , LO 2 , LAr, CO 2 , LNG, LC 2 H 2 |
| Hydrostatic Test Pressure |
4.5MPa |
| Pneumatic Test Pressure |
3.3MPa |
|
|
|
 |
