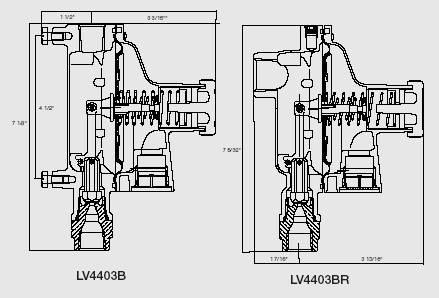

Low Pressure Second Stage Regulators LV4403B Series







File Name:
REGO-LV4403B_LV6503B
File Size: 1.62 MB PDF
REGO LV4403B


  Features

  • Large vent helps prevent blockage and has 3/4" F.NPT for vent piping.
  • With 15 PSIG inlet pressure, regulator is designed to not pass more than 2 PSIG with the seat disc removed.
  • Incorporates integral relief valves.
  • Replaceable valve orifice and valve seat disc.
  • Straight line valve closure reduces wear on seat disc.
  • Unique bonnet vent profile minimizes vent freeze over when properly installed.
  • Large molded diaphragm is extra sensitive to pressure changes.
  • Built in pressure tap has plugged 1/8" F.NPT outlet. Plug can be removed with a 3/16" hex allen wrench.
  • Select brown finish.




Application



Designed to reduce first stage pressure of 5 to 20 PSIG down to burner pressure, normally 11" w.c. Ideal for medium commercial installations, multiple cylinder installations and normal domestic loads.



  RegO LV4403B Series
