ASDI Vertical Water Bath Vaporizer VQ320V ¡V Q1650V

Advantages






File Name:
ASDI-Q320V-Q1650V
File Size: 1.95 MB PDF
ASDI VQ32V-01650V

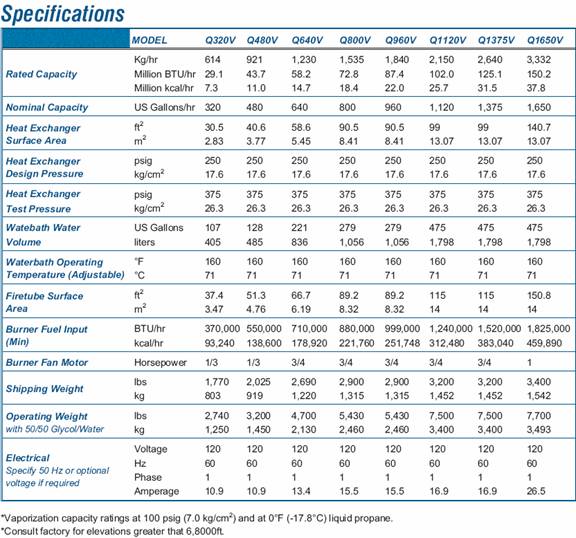

Specifications







  Features


  • Meets the design requirements of NFPA Pamphlet 58 for gas fired waterbath vaporizers.
  • The LPG heat exchanger is designed and constructed to conform with ASME Pressure Vessel Code, Section VIII, Division 1.
  • All wiring, controls, electrical components, and their installation comply with recognized standards defined in NFPA 58 and 70.
  • Industrial duty fixed air forced draft power burner provides optimum exhaust stack temperatures and fast response to load changes.
  • Float activated high LPG liquid level shutdown switch.
  • LPG heat exchanger design pressure rating: 250 psig at 650¢XF ( 17.6 kg /cm2 at 343¢XC ).
  • Minimum 15¢XF [ 8.4¢XC ] superheat @ 100% capacity.
  • Water level sight gauge.
  • Powder coated enclosure for durability with fully insulated waterbath for greater efficiency.
  • Lifting lugs provided for ease of field installation.
  • Water circulation pump standard on all models to eliminate thermal stratification and increase vaporizer efficiency.
  • Electronic flame safeguard assures positive and safe ignition.
  • Two electronically operated main fuel safety shutoff valves in gas train.




Advantages



  • Simple push button start ¡V no hassle operation.
  • Push to prime feature added for cold-start days.
  • Heavy duty Eclipse industrial fixed-air burner requires no
  • adjustments, even at high elevations.
  • Designed for extreme weather conditions. Proven reliability to -40¢XF.
  • Built-in heavy ends separation chamber - prevents clogging of regulators and other downstream devices.
  • Best in class, double protected cabinet - powder coating over heavy duty galvanized sheet steel.
  • Eight point annunciator display panel provides up to the minute visual status.
